Thermal Imaging of Under Floor Heating Systems

Red Current Ltd provide high resolution thermal imaging inspections of underfloor heating systems in domestic & commercial facilities throughout the UK

underfloor heating thermal image

Thermographic Survey Estimate. Receive an estimate by email within the hour.


Considered hiring a thermal camera?

Thermal Camera Hire

Red Current stock the complete range of FLIR thermal imaging cameras available to hire.

Free Next Day Delivery throughout the UK complete with analysis and report generation software.

Find out more...

Example Images


The flow of hot water is being restricted by a blockage or air-lock close to the system manifold.


Cold spot on the floor is possibly due to a leak from the hot water pipe at Sp1.

How does thermal imaging work for underfloor heating systems?

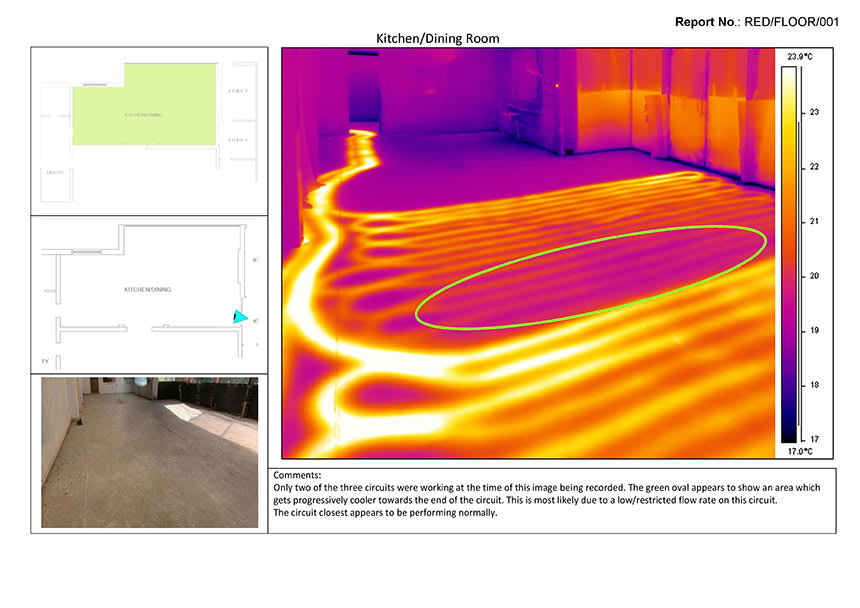

A thermal imaging survey of an underfloor heating system involves capturing thermal images of the floor with the heating system on. Under the appropriate conditions it is possible to identify the location and route of the sub-surface pipes by way of a temperature difference on the surface of the floor.

Benefits of using thermal imaging

Surveys of an underfloor heating system are carried out for a number of reasons including:

  • To locate and map the network of sub-surface pipes
  • To verify that the installation meets with the design specification
  • To assist in diagnosing the causes of poorly performing areas
  • To assist in locating the source of water leaks


Red Current only use the highest specification equipment

Red Current Ltd uses the highest specification thermal imaging cameras commercially available. Our high resolution cameras are capable of determining temperature differences as low as 0.04°C, enabling us to deliver outstanding results.
