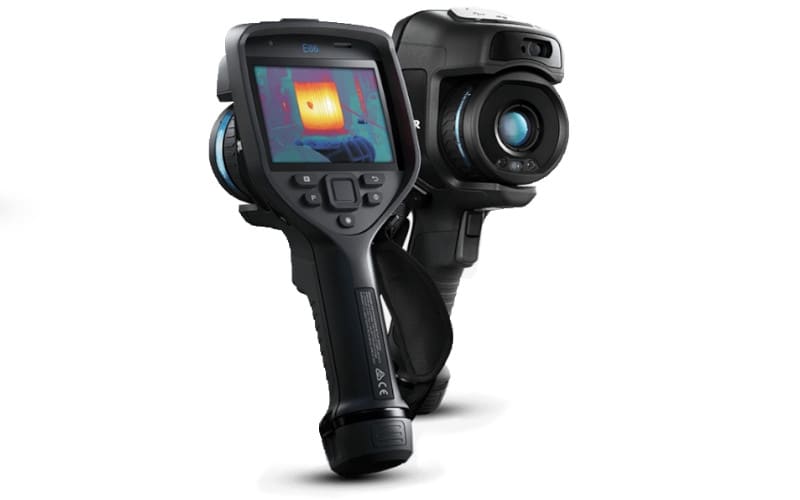

FLIR E86 Thermal Imaging Camera Details
The FLIR E86 is a high performance thermal camera with the features needed for fast, accurate detection of hot spots and hidden deficiencies.
Manufacturer: Teledyne FLIR
Part No.: 78512-1301
Price: As an approved Flir reseller, we can offer the best prices in the industry for brand new thermal cameras. Enquire Now for our offers.
Product Information
The FLIR E86 is packed with the high-performance features needed for fast, accurate detection of hot spots and hidden deficiencies. This 464 × 348 pixel thermal camera has an expanded temperature measurement range for easier detection of hot spots and hidden anomalies on electrical and mechanical assets.
Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, while FLIR imaging technology such as UltraMax® and MSX® ensure crisp, vibrant thermal images. Onboard FLIR Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations.
Lens Package Options
To help you choose the ideal configuration for your application, the table below outlines some of the available FLIR thermal camera lens combinations and corresponding part numbers. Whether you need long-range precision, wide-area coverage, or flexible dual-field capability, there's a setup to match your inspection needs.
| Camera & Lens Type | Part Number |
|---|---|
| FLIR E86 with 24° Lens | 78512-1301 |
| FLIR E86 with 42° Lens | 78513-1301 |
| FLIR E86 with 14° Lens | 78511-1301 |
| FLIR E86 with 24° & 14° Lenses | 78514-1301 |
| FLIR E86 with 24° & 42° Lenses | 78515-1301 |
| FLIR E86 with 42° & 14° Lenses | 78517-1301 |
| FLIR E86 with 24°, 42° & 14° Lenses | 78516-1301 |
Camera Features
Resolution: 464 x 348 pixels
Range: -20°C to +1500°C
Lens: Standard Angle
Sensitivity: < 0.04°C
Download the FLIR E86 24° Datasheet
Box Content
- FLIR E86 Thermal Imaging Camera
- Hard transport case
- Battery (2 ea.)
- Battery charger dock
- Hand Strap & Wrist Strap
- Power supply for battery charger
- Power supply, 15 W/3 A
- 8GB SD Card
- USB 2.0 A to USB Type-C Cable
- USB Type-C to USB Type-C Cable
- USB Type-C to HDMI Adapter
Software
Thermal Studio is FLIR's software designed for easy viewing and editing of radiometric images, report generation and measurements. There is a free option with all the basic functions.
Additional Advice
Warranty
FLIR Exx-Series Demo Video
Thinking of purchasing a FLIR E86 camera? Have a look at the video below to see some of the available functions allowing you to get the most of the FLIR thermal imaging camera.
