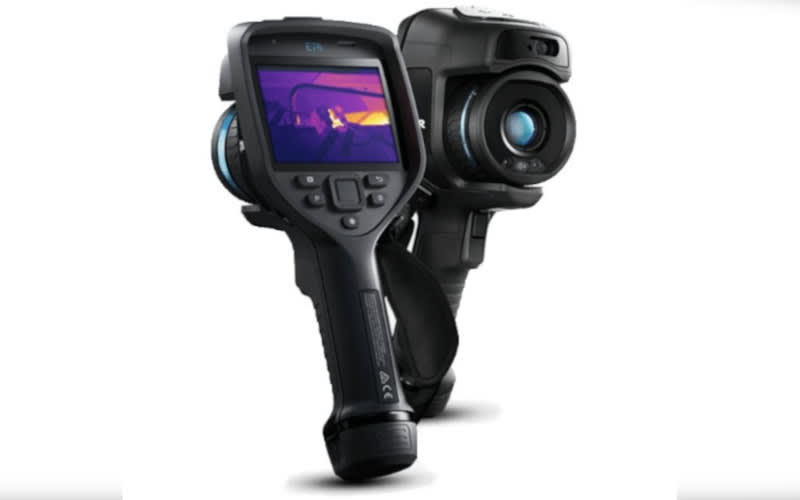

FLIR E76 Thermal Imaging Camera Details
With its extraordinary resolution and range, the FLIR E76 has the sensitivity and resolution needed to detect any problems and find hidden deficiencies – even from a distance.
Manufacturer: Teledyne FLIR
Part No.: 78512-1101
Price: As an approved Flir reseller, we can offer the best prices in the industry for brand new thermal cameras. Enquire Now for our offers.
Product Information
The FLIR E76 offers complete coverage of near and distant targets through a range of interchangeable AutoCal™ lenses, with fields of view for everything from wide-angle roof inspections to electrical inspections performed from a safe distance. A step up from the FLIR E54, the E76 includes laser-assisted autofocus, and 3 area measurement boxes. The 320 × 240 thermal resolution produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX® technology for added detail and perspective. Onboard FLIR Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations.
This specialist camera will allow you to diagnose and fix issues without ripping up floorboards or creating openings in walls - a far easier, cheaper and safer method all round.
Lens Package Options
To help you choose the ideal configuration for your application, the table below outlines all available FLIR Exx Series thermal camera lens combinations and corresponding part numbers. Whether you need long-range precision, wide-area coverage, or flexible dual-field capability, there's a setup to match your inspection needs.
| Part Number | Lens Configuration | Description |
|---|---|---|
| 78511-1101 | 14° | Narrow FOV for long-range, high-detail inspections |
| 78512-1101 | 24° | Standard FOV for general-purpose diagnostics |
| 78513-1101 | 42° | Wide FOV for broader area coverage |
| 78519-1101 | 80° | Ultra-wide FOV for close-up, large surface inspections |
| 78514-1101 | 24° + 14° | Dual fixed lenses for switching between general and detailed views |
| 78515-1101 | 24° + 42° | Dual fixed lenses for flexible wide and standard inspections |
| 78517-1101 | 42° + 14° | Dual fixed lenses for combining wide-area and long-range detail |
| 78516-1101 | 24° + 14° + 42° | Triple lens kit for maximum versatility across inspection types |
| 78518-1101 | DFOV 14° + 24° | Dual Field of View lens with switchable narrow and standard views |
| 78520-1101 | DFOV (14° + 24°) + 42° | DFOV lens plus fixed wide lens for added flexibility |
| 78521-1101 | DFOV (24° + 42°) | DFOV lens with switchable standard and wide views |
| 78523-1101 | DFOV (24° + 42°) + 14° | DFOV lens plus fixed narrow lens for full-range adaptability |
Camera Features
Resolution: 320 x 240 pixels
Range: -20°C to +650°C
Lens: Standard Angle
Sensitivity: < 0.04°C
Download the FLIR E76 24° Datasheet
Box Content
- FLIR E76 Thermal Imaging Camera
- Hard transport case
- Battery (2 ea.)
- Battery charger dock
- Hand Strap & Wrist Strap
- Power supply for battery charger
- Power supply, 15 W/3 A
- 8GB SD Card
- USB 2.0 A to USB Type-C Cable
- USB Type-C to USB Type-C Cable
- USB Type-C to HDMI Adapter
Software
Thermal Studio is FLIR's software designed for easy viewing and editing of radiometric images, report generation and measurements. There is a free option with all the basic functions.
Additional Advice
Warranty
FLIR Exx-Series Demo Video
Thinking of purchasing a FLIR E76 camera? Have a look at the video below to see some of the available functions allowing you to get the most of the FLIR thermal imaging camera.
